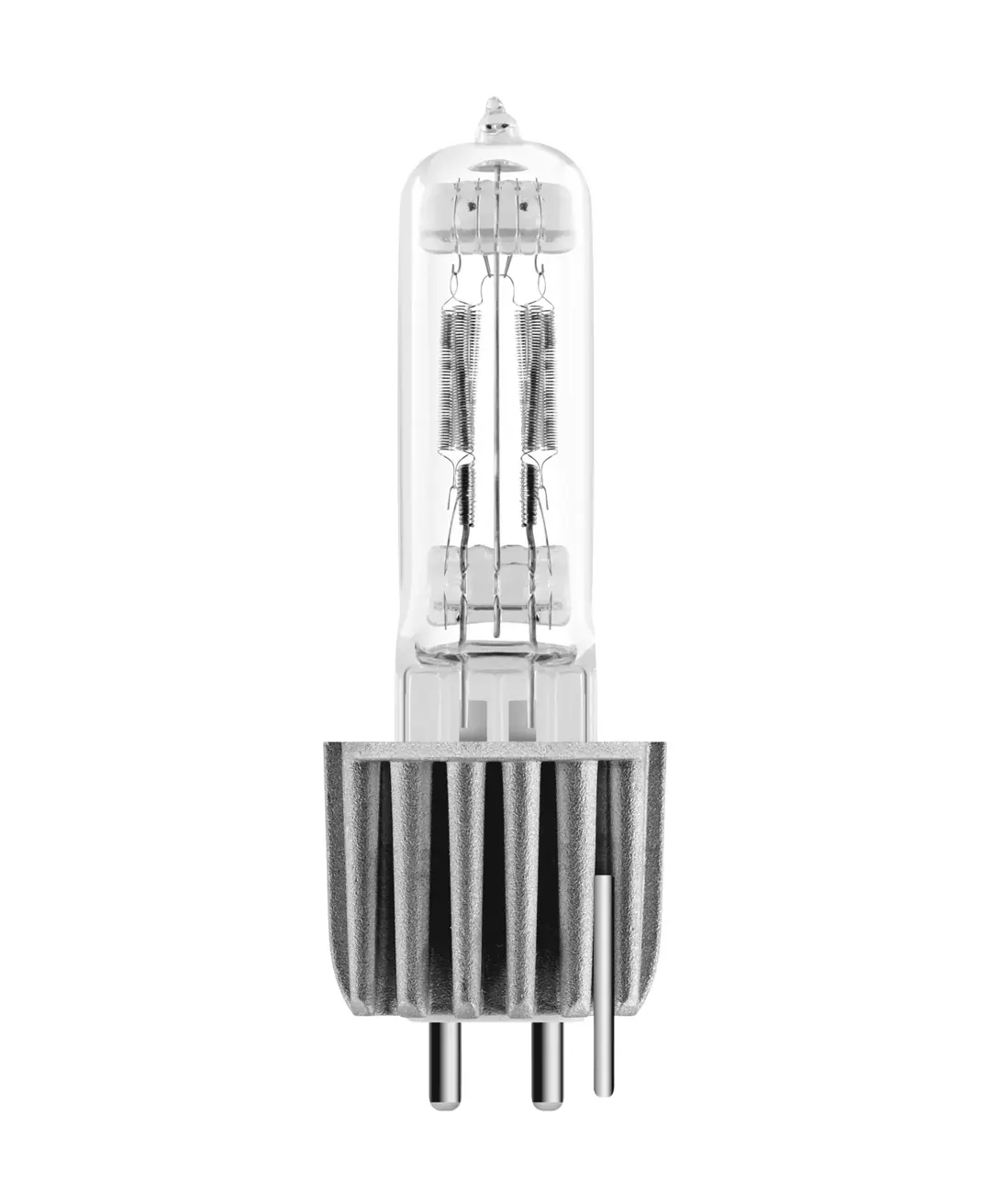

OSRAM欧司朗 HPL 93729 LL 750 W 230 V 卤素灯
- 能够实现射灯灯光的最佳利用
安全建议
To prevent personal injury or damage to property, halogen lamps may only be operated in suitable luminaires designed with suitable mechanisms (cover panel etc.) to ensure that in the event of a lamp bursting no parts/shards can escape and that during operation no ultraviolet radiation can escape. Because of the heat produced only heat-resistant lamp connections (holders) may be used. Do not operate near people, or any materials that are flammable, sensitive to heat or affected by drying out. Detailed information is available on request.
技术数据
特定分类
Order reference
93729 LL
ANSI编码
Other
电参数
标称电压
230 V
标称功率
750.00 W
Energy consumption in on-mode [AGGR]
815.0 kWh/1000h
On-mode power [AGGR]
815.00 W
光度数据
色温
3050 K
Chromaticity coordinate x [AGGR]
0.434
Chromaticity coordinate y [AGGR]
0.403
显色指数 Ra
100
Correlated color temperature CCT [AGGR]
3038 K
Φuse value refers to luminous flux .. [AGGR]
360
Useful luminous flux (Φuse) [AGGR]
15595 lm
尺寸和重量
直径
19.0 mm
长度
104.0 mm
含灯头长度 (不含针脚/连接装置)
104.00 mm
光中心 (LCL)
60.3 mm
照明场
15.5*11.0 mm²
灯丝直径
11.0 mm
寿命
寿命
1500 h
更多的产品数据
灯头 (标准名称)
G9.5 w/Hsink
Lighting technology used [AGGR]
HL
功能
燃点位置
任意
认证与标准
Energy efficiency class [AGGR]
G
