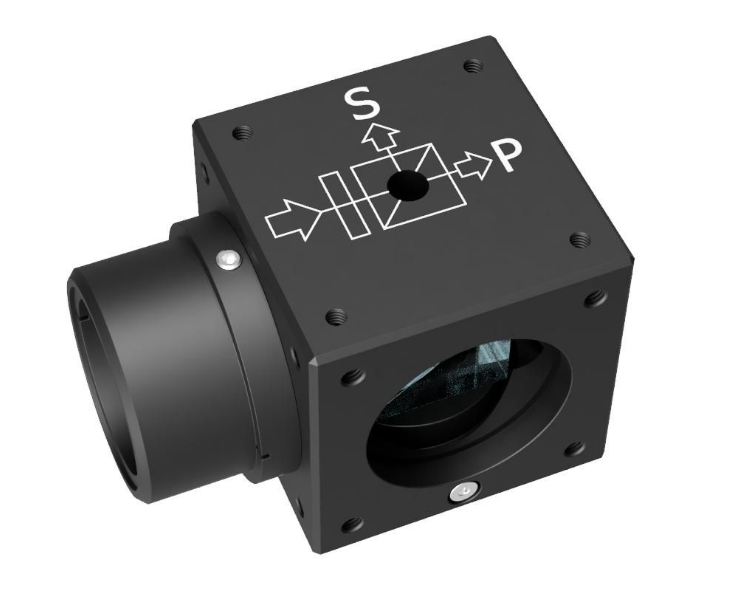

SIGMA西格玛 C30-VPBSWU-10/16 笼式可变偏光立方体分光器组件
更多信息| RoHS | 是 |
|---|
| CE | 否 |
|---|
| 图纸下载 |
|
|---|
| 技术指标 | | Design Wavelength | 1000-1600 nm | | Clear Aperture | φ15 mm | | Laser Damage Threshold | 0.3 J/cm2 (Angle of incidence 0°, laser pulse width 10 ns, pulse repetition rate: 20 Hz) | | Reflectance | Average 6 - 93 % | | Transmittance | Average 0.3 - 92 % | | Guide Rod Diameter (Spaceing Between Rod) | φ6 mm [M3] (30x30 mm) | | Optical Element Material | Waveplate : Quartz crystal, PBS : SF15 | | Cement | None (Waveplate : Air Gap, PBS :Optical contact) | | Primary Material | Aluminum | | Finish | Black anodized | | Weight | 0.13 kg |
|
|---|
