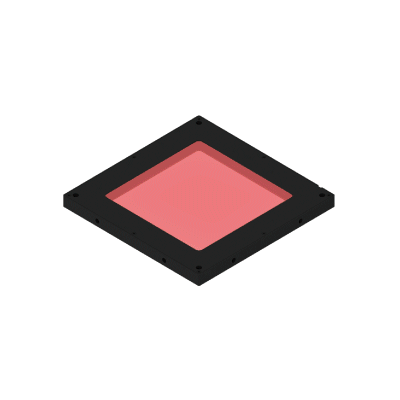

CCS希希爱视 LFXV-PF-100RD 平面光源
产品详细信息
| LED发光颜色 | Red |
|---|
| 峰值发光波长 | 631 nm typ. |
|---|
| 外观尺寸 | W 143 mm x D 143 mm x H 10 mm |
|---|
| 峰值电流 | 26 A |
|---|
| 输入电压 | 48 VDC max. |
|---|
| 极性, 信号 | 1, 2, 5, 6: (+)/3, 4, 7, 8: (-)/9: NC |
|---|
| 线缆长度 | 300 mm |
|---|
| 外壳材质 | Aluminum alloy, resin (protective plate, light-guiding diffusion plate) |
|---|
| 输入端口 | ELP-09V |
|---|
| 适合规格 | CE, UKCA, RoHS, IEC 62471（Exempt） |
|---|
| 使用温湿度 | Temperature: 0 to 40 °C, Humidity: 20 % to 85 %RH (with no condensation) |
|---|
| 保存温湿度 | Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation) |
|---|
| 冷却方式 | Natural air-cooling |
|---|
| 重量 | 440 g |
|---|
| 附属品 | User Manual, 2-branch cable (Model: FCB-0.3-PF-W-EL4-EL9) |
|---|
| 备注 | Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%).
* The duty cycle is expressed by the following equation:
Duty cycle (%) = 100 x Strobe time / Strobe cycle |
|---|
